Panasonic Plasma TVs have built-in fault diagnosing circuit.  If any fault occurs with any circuit board inside, the loaded firmware will detect it and will give you its indication in the form or standby light blinks. From the number of blinks at one time, experienced service technicians can detect the faulty section [circuit board], without opening the TV.  This will help technicians to detect and repair faulty section fast. Here are some hints about the number of blinks to Pansonic Plasma TVs. PANSONIC PLASMA TV:  MODEL NO: X24 _ C2 _ U2 _ S2 _ G20 _  G25 _ VT20 & VT25 Switch ON the set by its main power ON/OFF switch at its front panel [not with remote control], and count the number of blinks occur before the set shuts down. 2 Blinks:   15V SOS D_BOARD / P-BOARD. 3 Blinks:   3.3V SOS D BOARD. 4 Blinks:   POWER SOS P-BOARD. 5 Blinks    5V SOS D-BOARD. 6 Blinks    DRIVER SOS 1 SC BOARD OR D-SC FPC...

The repair of electronic equipment usually begins with its external inspection and diagnosis of the malfunction. In this case, you should inspect all the internal components of the SAMSUNG UE32F5300AK TV. Many visible changes in the state of the elements make it possible to determine the future direction of the troubleshooting. If the UE32F5300AK TV does not turn on, does not make any sounds when it is turned on, and also no indicators light up or blink on the front panel, there is a high probability of a malfunction in the  BN44-00605A  power  module  , which is made on the same board with the backlight LED power converter ( LED driver).   The 220V AC voltage is rectified by a diode bridge and filtered by electrolytic capacitors, on which a constant voltage of about 300v is formed as a result. The flyback converter, controlled by the S3310 PWM controller, provides the necessary rectified voltages in the secondary circuits of the puls...

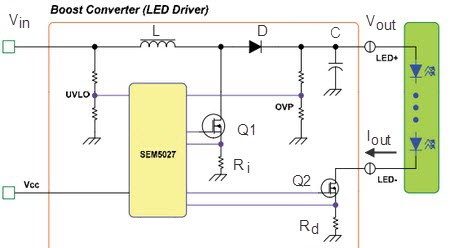

Many have long known that LED TVs of the fifth and sixth series of manufacturers Samsung and LG, where matrixes (LED panels) with direct illumination of the Direct LED display are used, LEDs can sometimes burn out already in the first or second year of operation. The most popular Samsung models that often need backlight repairs: UE32F5000 ..., UE32F5020 ..., UE32F5300 ..., UE320F5500 ... and others where panels are installed, for example, HF320BGSV1V, HF320BGA-B1 with direct illumination. Among LG TVs, the most often come in for repairs with faulty LED backlighting are models 32LN540 ..., 32LN541 ..., 32LN548 with LC320DUE and LC320DXE panels. Symptoms of a malfunction - there is sound, no image. The LED driver is functional and produces the maximum output voltage due to the absence of current in the load. An open in the diode circuit can be checked by the current source (stabilizer). When the panel is opened, one dangling LED is detected and usually a few more punche...

Repairing dead LCD Mivar 20m2 DVB t programming ic vct 6753 with new firmware using postal 3 programmer firmware:    https://bit.ly/3jeJOr9

Repairing Dead Vestel Smart Tv Chassis 17mb97 with rt809 programmer programming the spi flash MX25L1605 with original dump. mainboard chassis 17mb97 smart tv. you can download flash dump here: https://bit.ly/31461C7 ~*~If you enjoy watching my videos, then be sure to SUBSCRIBE, And SHARE post LINKS to my videos on other websites and blogs~*~

Sony KDL-37V5500 Bad Image/Colors/ Repair. the tv has a t-con reference: T370HW02. the problem is the ic as15-hf defective. after replacing it the tv work very well.
